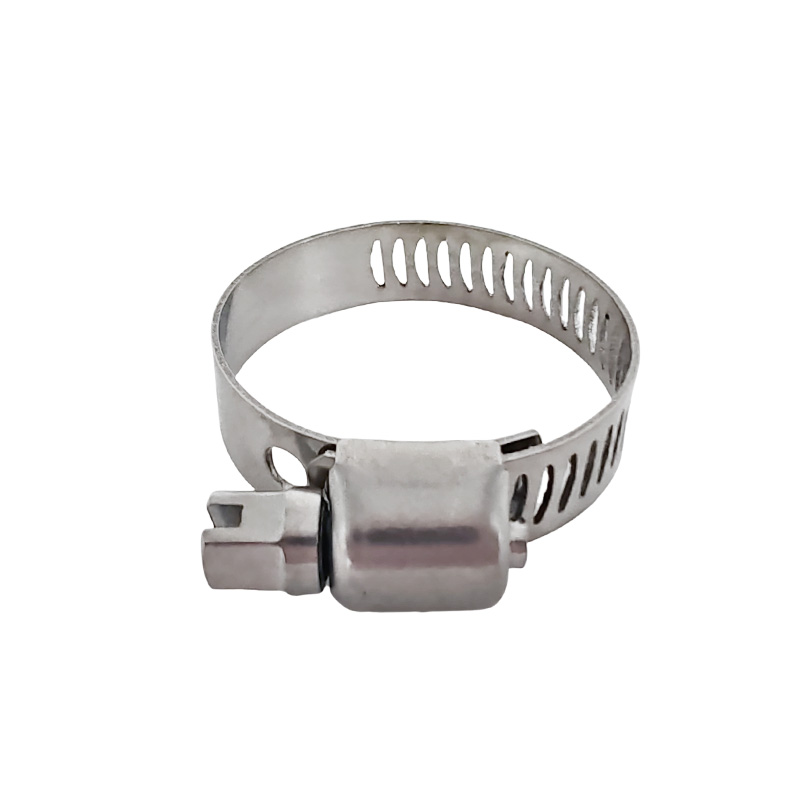

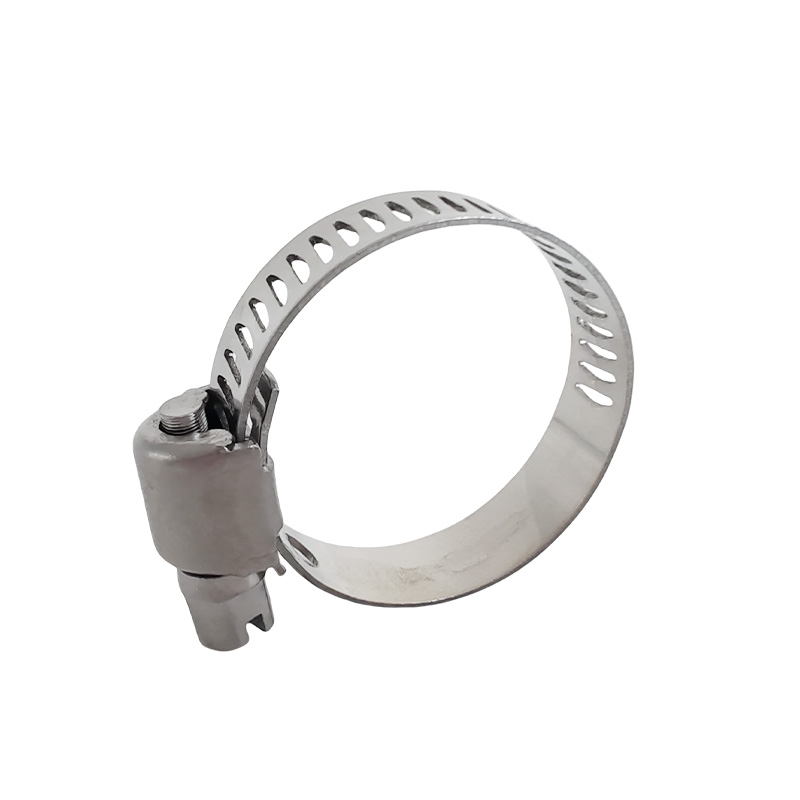

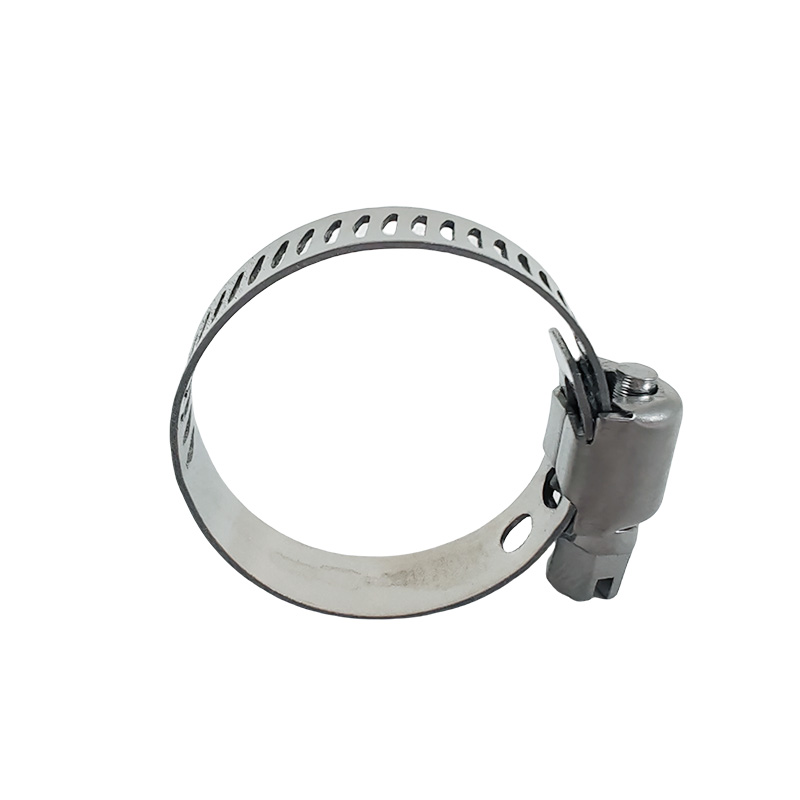

5/16″ Mini worm drive hose clamp W4

5/16″ (8mm) Mini worm drive hose clamp can be easily installed in restricted space because it is small and light. It is also called American type hose clamp. 8mm band can generate significant sealing pressure with relatively low installation torque. Save cost and space.

Description

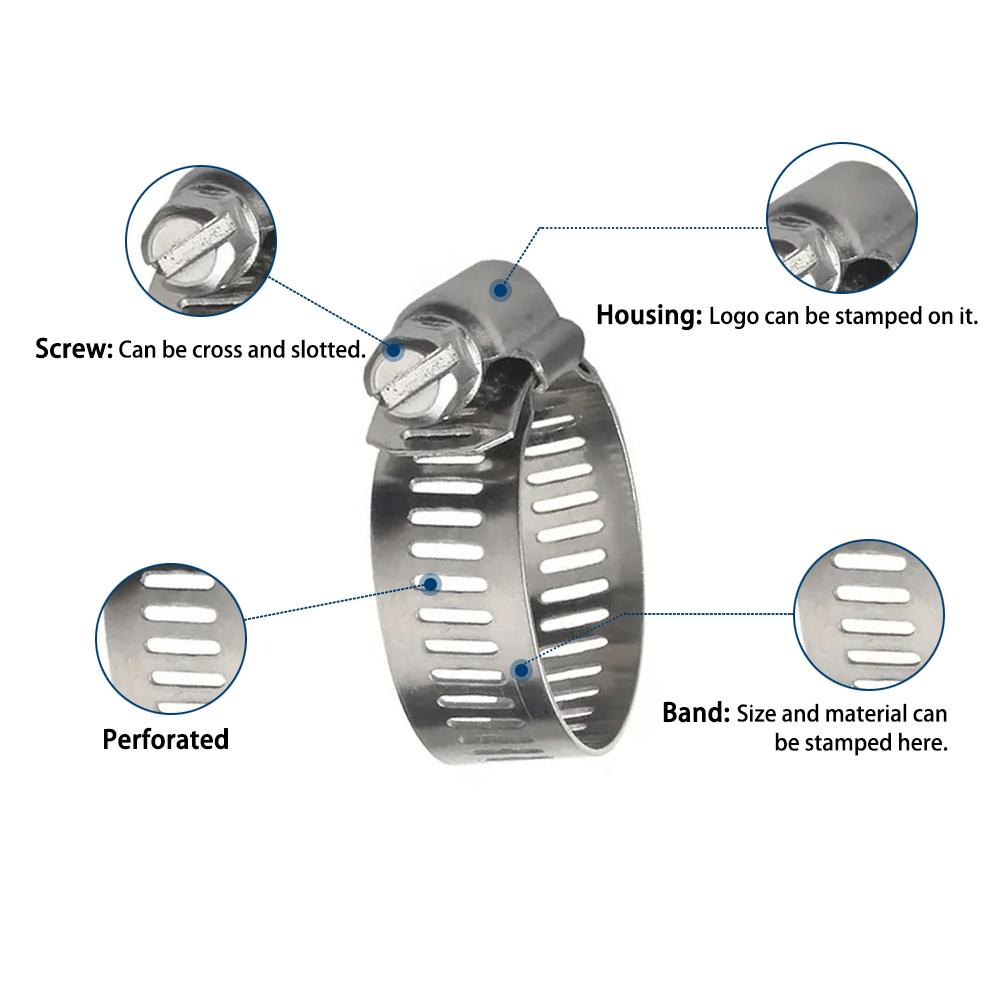

Structure Diagram

Feature

Mini worm drive hose clamp shape small and light, easily installed in restricted space.
Mini worm drive hose clamp band is perforated, can provide strong tightening torque.
Mini worm drive hose clamp is designed as per SAE standard, also called mini American type hose clamp.
Mini wormdrive hose clamp is suitable for air and fuel line, pneumatic or hydraulic system.
Ensure tight and leak-free seal
Bandwidth: 5/16”(8mm), thickness 0.024”(0.6mm)
Screw: 1/4″ (6mm) Hex slotted or cross screw head
Recommended Tightening Torque: 2.1N.m

Parameters

UD No.	SAE Size	Min Dia (in)	Max Dia (in)	Min Dia (mm)	Max Dia (mm)
UD8A-02	–	1/4	1/2	6	12
UD8A-04	04	5/16	5/8	6	16
UD8A-06	06	5/16	7/8	8	22
UD8A-08	08	7/16	1	11	25
UD8A-10	10	1/2	1-1/16	13	27
UD8A-12	12	9/16	1-1/4	14	32
Sizes can be adjusted as per enquiry.

Material

Material	Band	Housing	Screw
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 201SS/304SS	AISI 201SS/304SS	Zinc plated steel
W2B	AISI 201SS	Zinc plated steel	Zinc plated steel
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS
