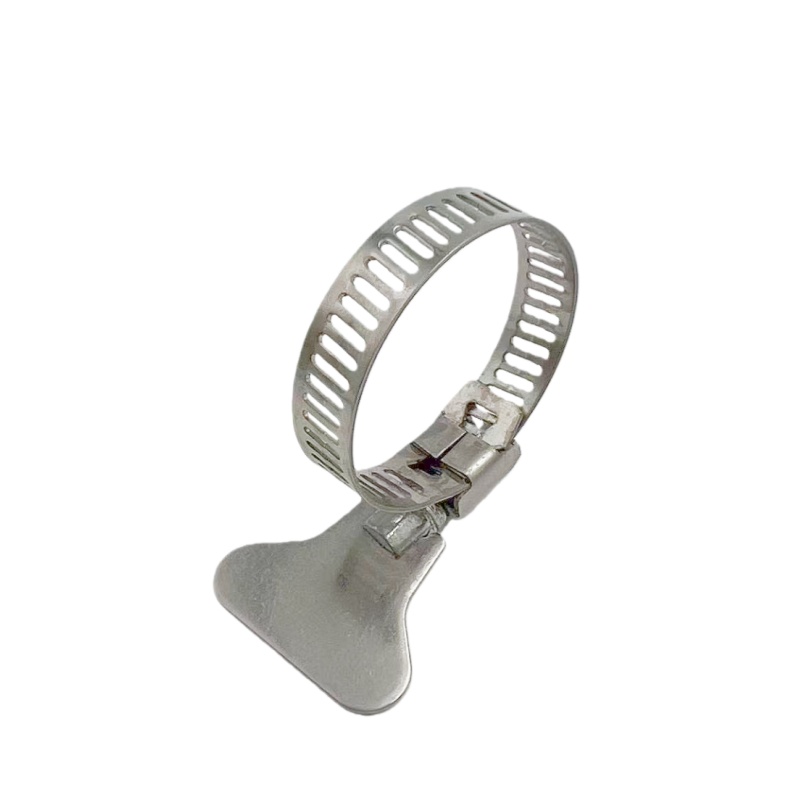

It has good corrosion resistance and oxidation resistance, and the installation and disassembly process is simpler and faster without the use of special tools. It is widely used in various industrial and civil fields.
American type hose clamp 8mm can be easily installed in some restricted applications. It is suitable for small hose diameter, such as air and fuel lines, vacuum hoses, pneumatic or hydraulic systems. 8mm band can generate significant sealing pressure with low installation torque.
| 产品代码 | 尺寸(in) | 尺寸(mm) | 只/袋 | 只/箱 | ||
| UD No. | Size(in) | Size(mm) | Pcs/Bag | Pcs/Ctn
|
||
| 12.7mm | 14.2mm | |||||
| UD12A-06 | UD14A-06 | 7/16-25/32 | 11-20 | 100 | 1000 | |
| UD12A-08 | UD14A-08 | 7/16-1 | 11-25 | 100 | 1000 | |
| UD12A-10 | UD14A-10 | 1/2-1 1/16 | 13-27 | 100 | 1000 | |
| UD12A-12 | UD14A-12 | 1/2-1 1/4 | 13-32 | 50 | 1000 | |
| UD12A-16 | UD14A-16 | 11/16-1 1/2 | 18-38 | 50 | 1000 | |
| UD12A-20 | UD14A-20 | 3/4-1 3/4 | 19-44 | 50 | 1000 | |
| UD12A-24 | UD14A-24 | 1-2 | 25-51 | 50 | 500 | |
| UD12A-28 | UD14A-28 | 1 1/4-2 1/4 | 32-57 | 50 | 500 | |
| UD12A-32 | UD14A-32 | 1 1/2-2 1/2 | 38-64 | 50 | 500 | |
| UD12A-36 | UD14A-36 | 1 3/4-2 3/4 | 44-70 | 25 | 500 | |
| UD12A-40 | UD14A-40 | 2-3 | 51-76 | 25 | 500 | |
| UD12A-44 | UD14A-44 | 2 1/4-3 1/4 | 57-82 | 25 | 500 | |
| UD12A-48 | UD14A-48 | 2 1/2-3 1/2 | 64-89 | 25 | 250 | |
| UD12A-52 | UD14A-52 | 2 3/4-3 3/4 | 70-95 | 25 | 250 | |
| UD12A-56 | UD14A-56 | 3-4 | 76-101 | 25 | 250 | |
| UD12A-60 | UD14A-60 | 3 1/4-4 1/4 | 83-108 | 25 | 250 | |
| UD12A-64 | UD14A-64 | 3 1/2-4 1/2 | 89-114 | 25 | 250 | |
| UD12A-72 | UD14A-72 | 4-5 | 102-127 | 25 | 250 | |
| UD12A-80 | UD14A-80 | 4 1/2-5 1/2 | 114-140 | 25 | 250 | |
| UD12A-88 | UD14A-88 | 5-6 | 127-152 | 25 | 250 | |
| UD12A-96 | UD14A-96 | 5 1/2-6 1/2 | 140-165 | 10 | 100 | |
| UD12A-104 | UD14A-104 | 6-7 | 152-178 | 10 | 100 | |
| Sizes and packing can be adjusted as per inquiry. | ||||||
| 材料 | 钢带 | 箍头 | 螺丝 |
| Material | Band | Housing
|
Screw |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| W2 | AISI 201SS/304SS | AISI 201SS/304SS | Zinc plated steel |
| W2B | AISI 201SS | Zinc plated steel | Zinc plated steel |
| W4 | AISI 201SS/304SS | AISI 201SS/304SS | AISI 201SS/304SS |
| W5 | AISI 316SS | AISI 316SS | AISI 316SS |
It has good corrosion resistance and oxidation resistance, and the installation and disassembly process is simpler and faster without the use of special tools. It is widely used in various industrial and civil fields.
