9mm Worm Drive Hose Clamp

9mm Worm drive hose clamp, also called German type hose clamp with welding housing, are capable of providing a greater clamping force compared to American style clamps, when achieved with less torque.

For heavy equipment, recreational vehicles, lawn and garden equipment, it is possible to utilize one of these clamps with 9 mm band width instead of American type hose clamp, which can save cost.

Description

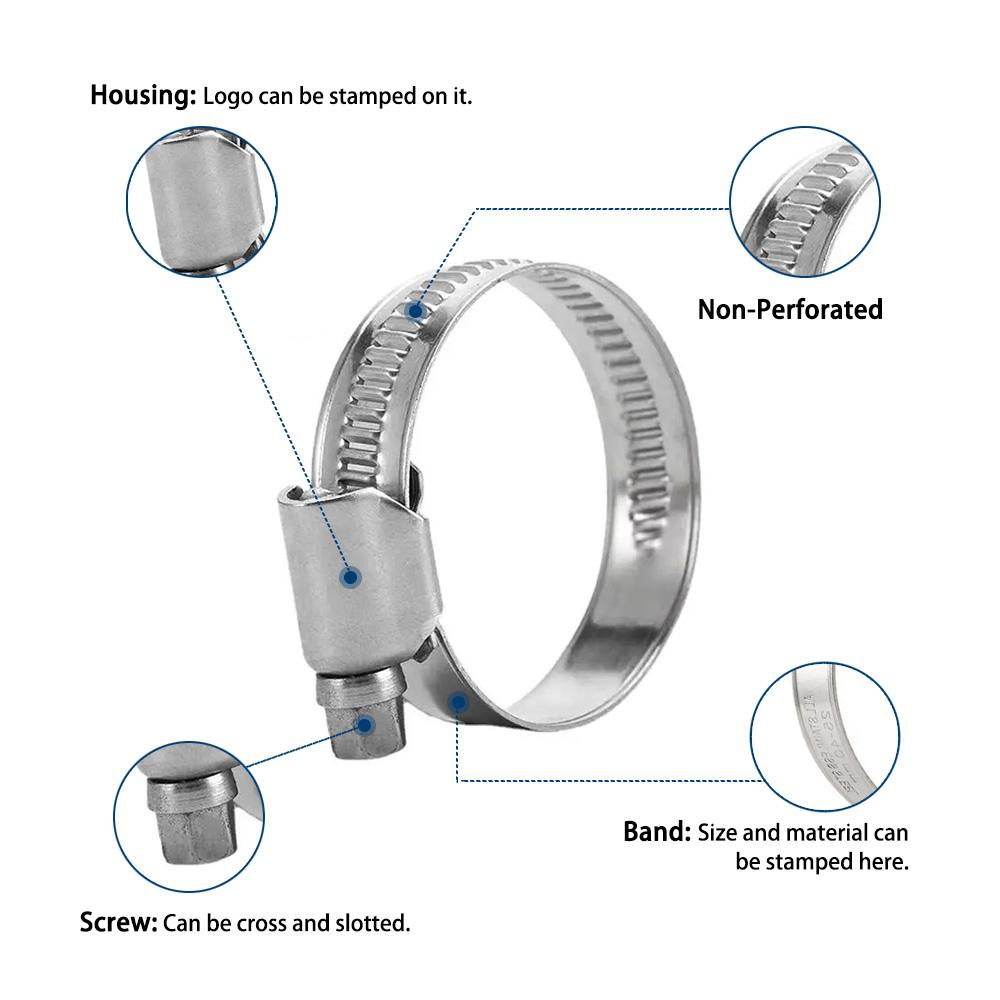

Structure Diagram

Feature

Appearance: Simple, smooth lines, and even hoop parts
Design: Non-perforated band to protect the hose surface from damage
Band Width: 9 mm
Band Thickness: 0.6 mm, 0.7 mm
Screw Type: 7 mm Hex slotted, Cross screw head
Free/Loading Torque: Free Torque: ≤ 1 N.m, Loading Torque: ≥ 6.5 N.m
Connecting Method: Welding
Labeling: Material and tightening range printed on the steel belt
Standard: BSPT
Applications: Heavy equipment, Recreational vehicles, Lawn and garden equipment

Parameters

Size(mm)	Width(mm)	UD NO.	PCS/Bag	PCS/CTN
8-12	9	9UDGT812	100	1000
10-16	9	9UDGT1016	100	1000
12-22	9	9UDGT1222	100	1000
16-27	9	9UDGT1627	100	1000
20-32	9	9UDGT2032	50	500
25-40	9	9UDGT2540	50	500
30-45	9	9UDGT3045	50	500
32-50	9	9UDGT3250	50	500
40-60	9	9UDGT4060	20	500
50-70	9	9UDGT5070	20	500
60-80	9	9UDGT6080	20	500
70-90	9	9UDGT7090	20	500
80-100	9	9UDGT80100	20	500
90-110	9	9UDGT90110	20	500
100-120	9	9UDGT100120	20	250
110-130	9	9UDGT110130	20	250
120-140	9	9UDGT120140	20	250
…….
Sizes can be adjusted as per enquiry.

Material

Material	Band	Housing	Screw
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 201SS/304SS	AISI 201SS/304SS	Zinc plated steel
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS
