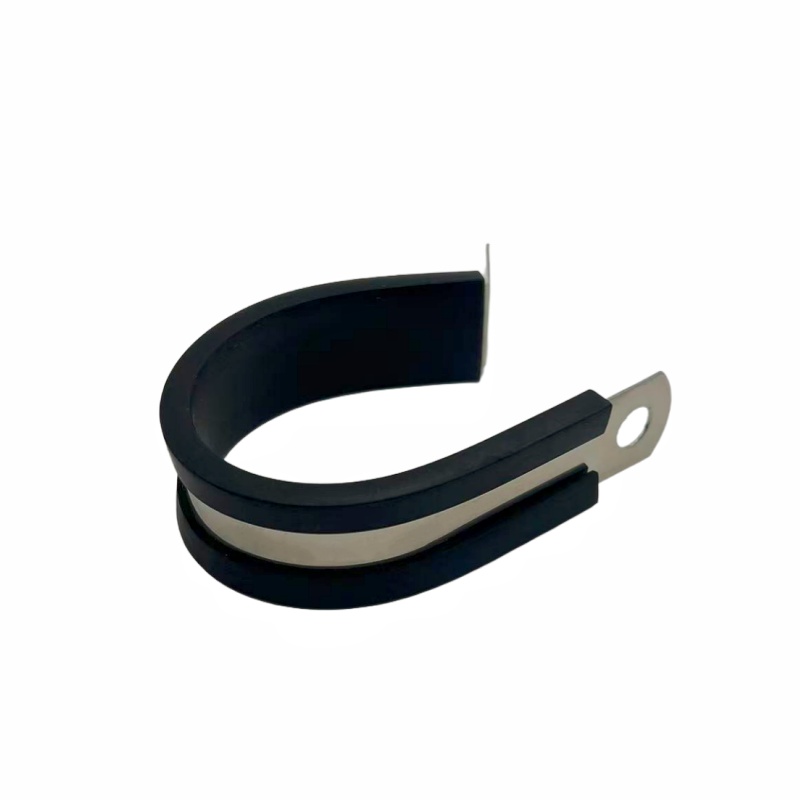

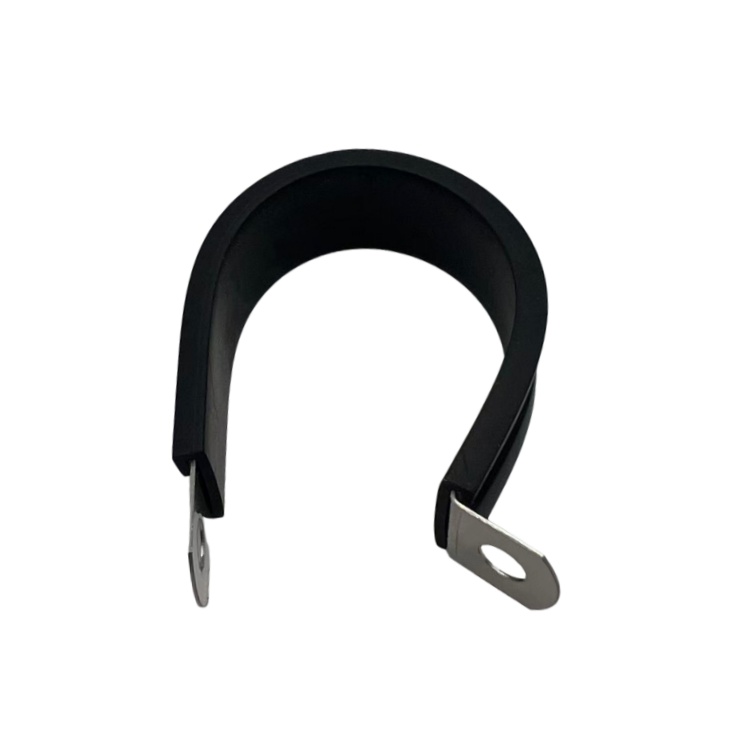

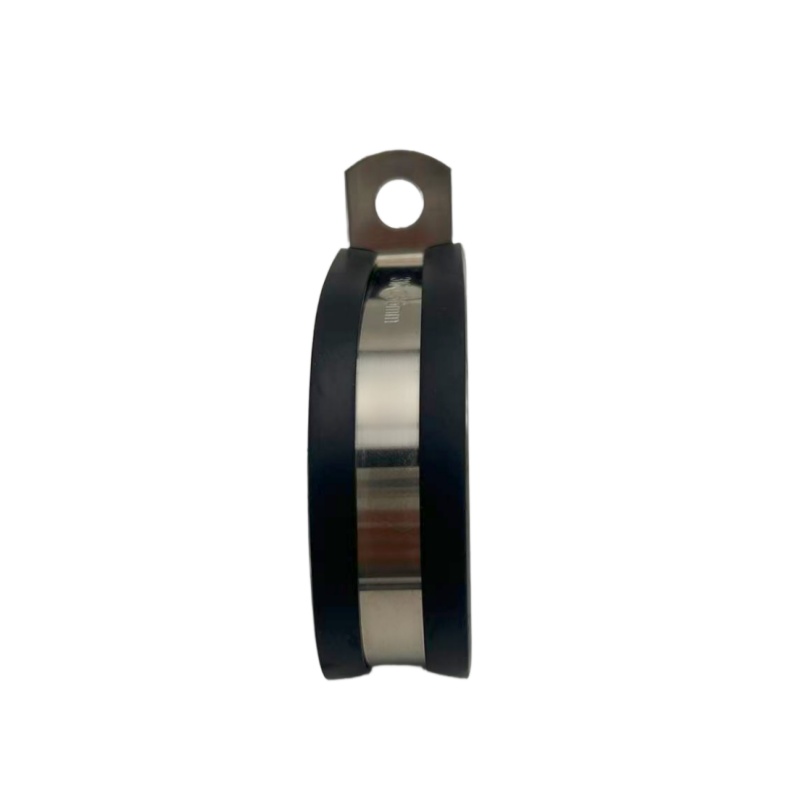

SS316 Rubber Lined P Clip

This rubber-lined P-type cable clamp, also known as a “P-clamp,” provides a secure and reliable clamping of the application area, preventing potential damage from vibration.
The screw holes on both ends of the clamp are reinforced with steel plates to ensure a secure clamping position.
This rubber-lined P-type cable clamp is highly recommended for mounting pipes, cable ducts, and hoses in a variety of applications.

Description

Feature

Simple installation
Can tight the fastening object tighter
Reduce vibration and prevent water penetration
Can provide a good insulation effect
Band material: zinc plated iron/stainless steel
Bandwidth: 12mm, 15m, 20mm, 25mm
Rubber can be EPDM / Silicone
Can be customized as your request
Widely used in automotive, plumbing, construction, industrial, marine, electrical, power equipment, lawn and garden applications.

Parameters

UD NO.	Band(mm)	Size(mm)	Thickness(mm)	Pcs/Bag	Pcs/Ctn
UDRP-06	12/15/20/25	6	0.6/0.8/1.0	100	1000
UDRP-08	12/15/20/25	8	0.6/0.8/1.0	100	1000
UDRP-10	12/15/20/25	10	0.6/0.8/1.0	100	1000
UDRP-12	12/15/20/25	12	0.6/0.8/1.0	100	1000
UDRP-14	12/15/20/25	14	0.6/0.8/1.0	100	1000
UDRP-16	12/15/20/25	16	0.6/0.8/1.0	100	1000
UDRP-18	12/15/20/25	18	0.6/0.8/1.0	100	1000
UDRP-20	12/15/20/25	20	0.6/0.8/1.0	100	1000
UDRP-22	12/15/20/25	22	0.6/0.8/1.0	50	1000
UDRP-25	12/15/20/25	25	0.6/0.8/1.0	50	1000
UDRP-28	12/15/20/25	28	0.6/0.8/1.0	50	1000
UDRP-30	12/15/20/25	30	0.6/0.8/1.0	50	1000
UDRP-32	12/15/20/25	32	0.6/0.8/1.0	50	500
UDRP-35	12/15/20/25	35	0.6/0.8/1.0	50	500
UDRP-38	12/15/20/25	38	0.6/0.8/1.0	50	500
UDRP-40	12/15/20/25	40	0.6/0.8/1.0	50	500
UDRP-42	12/15/20/25	42	0.6/0.8/1.0	50	500
UDRP-45	12/15/20/25	45	0.6/0.8/1.0	25	500
UDRP-48	12/15/20/25	48	0.6/0.8/1.0	25	200
UDRP-50	12/15/20/25	50	0.6/0.8/1.0	25	200
UDRP-55	12/15/20/25	55	0.6/0.8/1.0	25	200
UDRP-60	12/15/20/25	60	0.6/0.8/1.0	25	200
UDRP-65	12/15/20/25	65	0.6/0.8/1.0	25	200
UDRP-70	12/15/20/25	70	0.6/0.8/1.0	25	200
Size can be adjusted as per inquiry
