Worm Drive Hose Clamp with Spring

Worm drive hose clamp with spring also called German type off-center head hose clamp, can delivers higher clamping force at lower torque. This design is an ideal choice for applications subject to extreme temperature variations, ensuring the maintenance of consistent tension and reliability.

Description

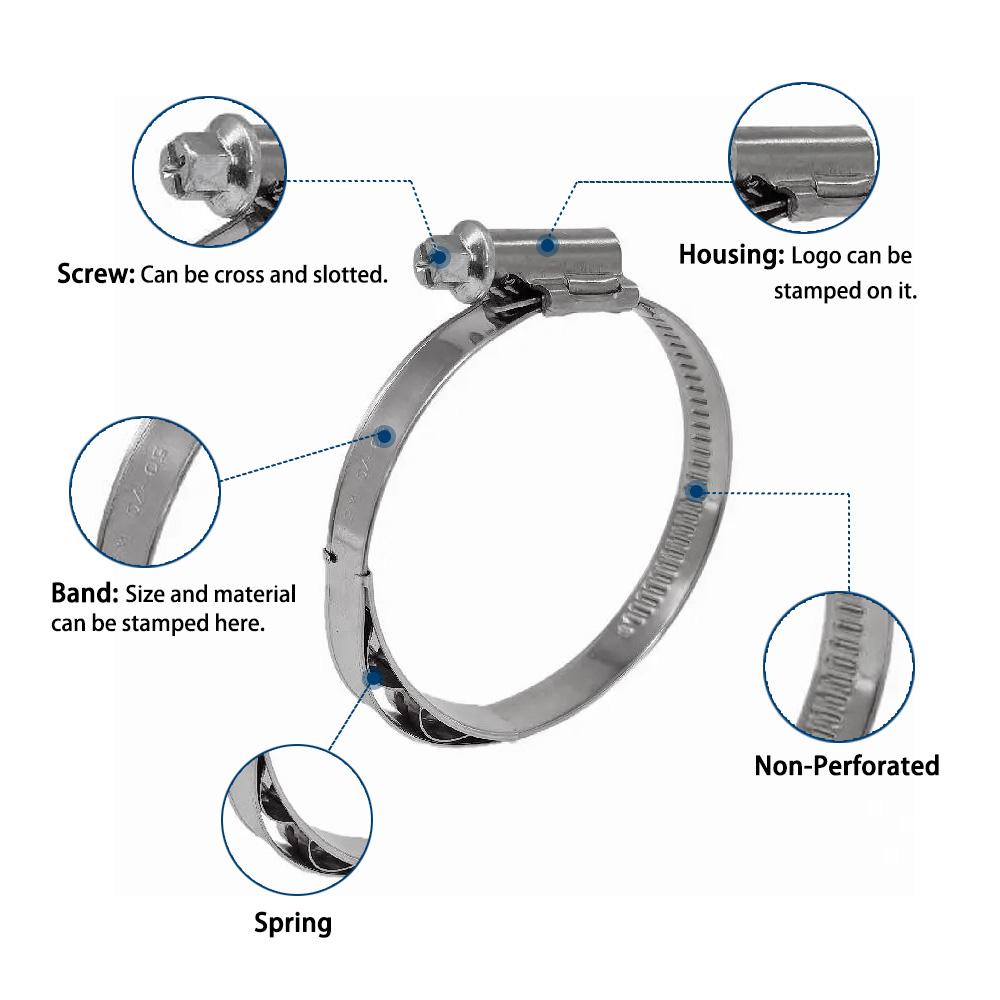

Structure Diagram

Feature

Simple appearance, built-in spring.
The loading of the spring enables the hose band to automatically adapt to pipes or components of different diameters.
Band Width：9/12mm
Band Thickness: 0.6mm
Screw Slot: “+” and “-”
Recommended Tightening Torque: 6N.m
Size Range: Can be selected from 27 to 190mm
Application: Widely used in automobiles, tractors, forklifts, locomotives, ships,mines, petroleum, chemicals, pharmaceuticals,agriculture.

Parameters

Size(mm)	Width(mm)	UD NO.	PCS/Bag	PCS/CTN
8-12	9	9UDGNS-812	100	1000
10-16	9	9UDGNS-1016	100	1000
12-20	9/12	9/12UDGNS-1220	100	1000
16-27	9/12	9/12UDGNS-1627	100	1000
20-32	9/12	9/12UDGNS-2032	50	500
25-40	9/12	9/12UDGNS-2540	50	500
30-45	9/12	9/12UDGNS-3045	50	500
32-50	9/12	9/12UDGNS-3250	50	500
40-60	9/12	9/12UDGNS-4060	20	500
50-70	9/12	9/12UDGNS-5070	20	500
60-80	9/12	9/12UDGNS-6080	20	500
70-90	9/12	9/12UDGNS-7090	20	500
80-100	9/12	9/12UDGNS-80100	20	500
90-110	9/12	9/12UDGNS-90110	20	500
100-120	9/12	9/12UDGNS-100120	20	250
110-130	9/12	9/12UDGNS-110130	20	250
120-140	9/12	9/12UDGNS-120140	20	250
…….
Sizes can be adjusted as per enquiry.
