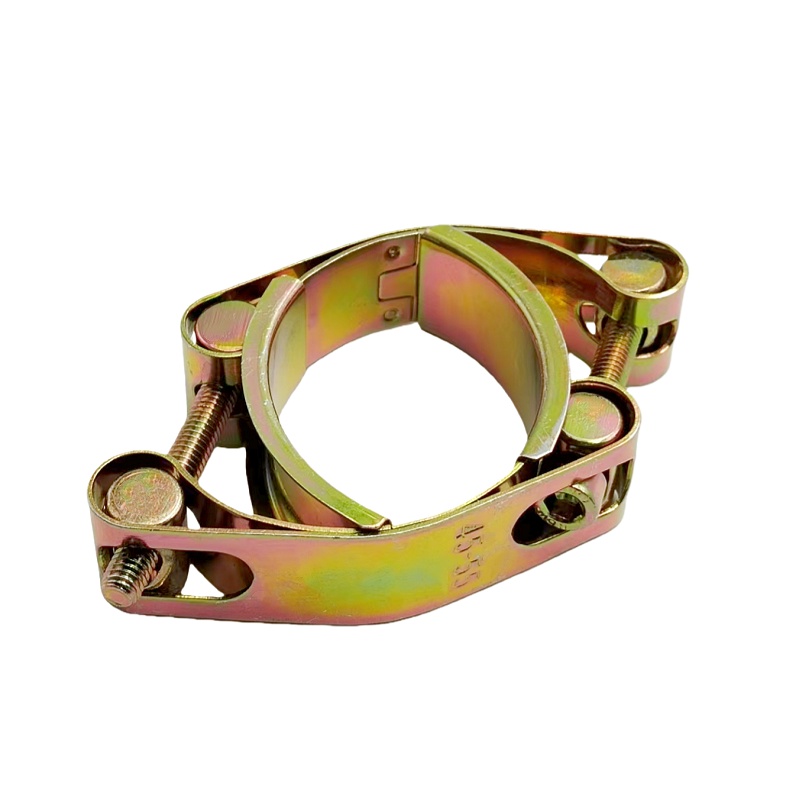

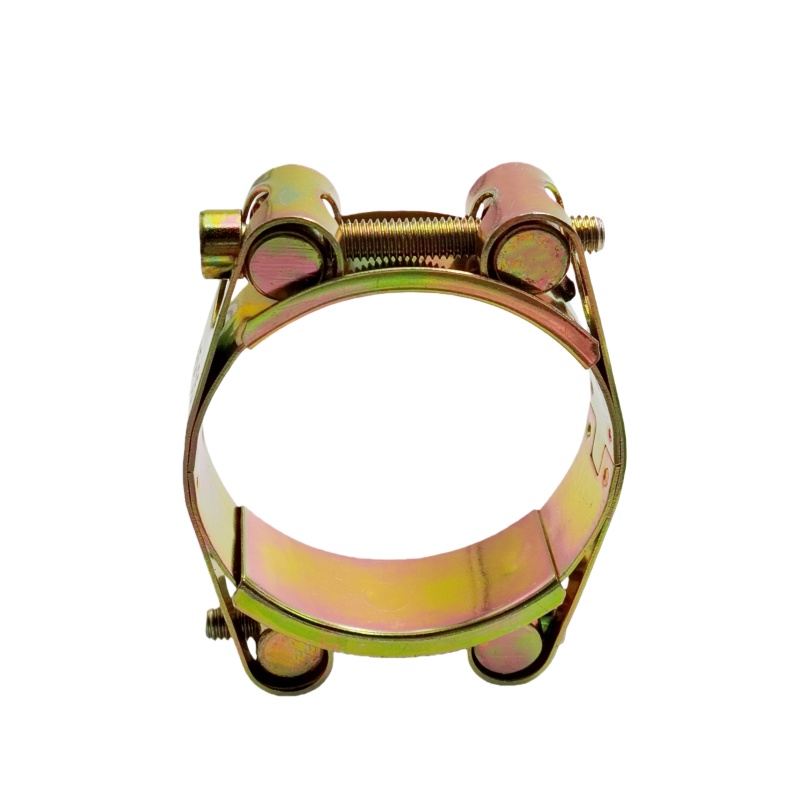

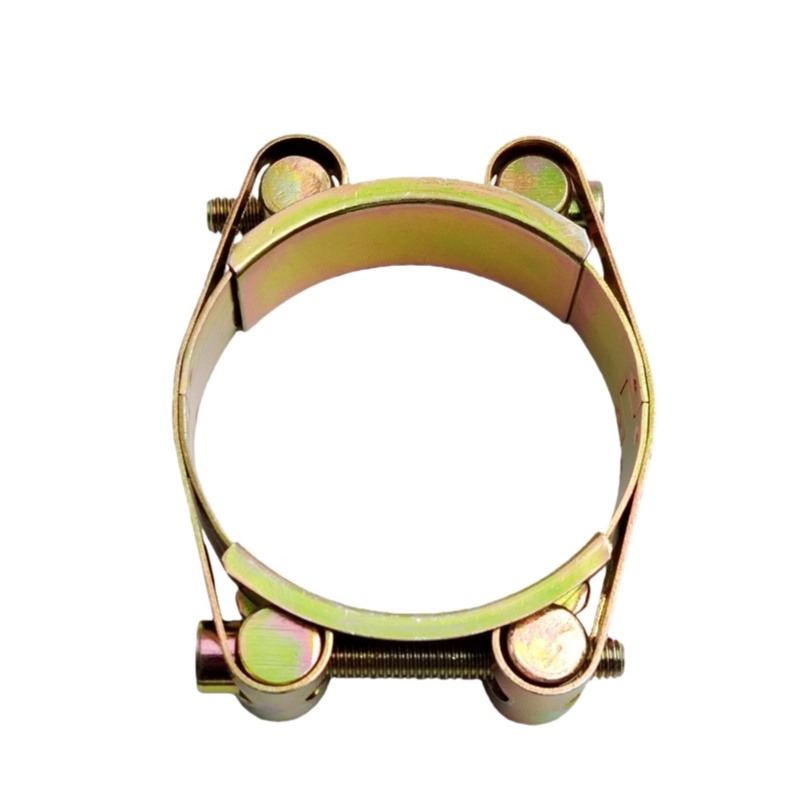

Yellow Double Bolt Strong Heavy Duty Hose Clamp

This double-bolt hose clamp is made of high-strength stainless steel, a material with excellent strength and corrosion resistance. It maintains structural integrity and stability over time, laying a solid foundation for the long-term safe use of the hose clamp and avoiding safety accidents caused by hose clamp failure due to material problems.

Description

Feature

Ring-shaped appearance, with an adjustable fastening mechanism at one end.
Unique screw or ratchet adjustment mechanism, can be precisely adjusted according to the actual diameter of the pipe
Bandwidth*thickness：1) zinc plated :20*0/24*1.0
Size：35-45mm to all
Material and tightening range are printed on the steel belt.
Application: Automobiles, industry, agriculture, auto pipe , motor pipe , water pipe

Parameters

产品代码	加紧范围	带宽	料厚	螺丝	只/袋	只/箱
UD No.	Size mm	Bandwidth	Thickness	Screw	Pcs/bag	Pcs/carton
UDDB-3545	35-45	20	1.0	M6 * 50	10	100
UDDB-4050	40-50				10	100
UDDB-4555	45-55				10	100
UDDB-5060	50-60				10	100
UDDB-5565	55-65				10	100
UDDB-6070	60-70				10	100
UDDB-6575	65-75				10	100
UDDB-7080	70-80				10	100
UDDB-7585	75-85				10	100
UDDB-8090	80-90				10	100
UDDB-8595	85-95				10	100
UDDB2-6070	60-70	24	1.0	M8 * 60	50	50
UDDB2-7080	70-80				50	50
UDDB2-8090	80-90				50	50
UDDB2-90100	90-100				50	50
UDDB2-100110	100-110				50	50
UDDB2-110120					25	25

Material

材料	钢带	舌板	轴	套管	螺栓
Material	Band	Bridge	Trunnion	Sleeving	Bolt
W1	Zinc plated	Zinc plated	Zinc plated	Zinc plated	Zinc plated
W4	201/304ss	201/304ss	201/304ss	201/304ss	201/304ss
W5	316ss	316ss	316ss	316ss	316ss

Crafted from high-strength stainless steel, this double-bolt hose clamp delivers superior clamping force with its dual-screw mechanism. Its reinforced double-band design, combined with two welded bridges and solid metal rollers, ensures maximum security and hose protection. Ideal for heavy-duty applications, it also allows for easy installation on pre-fixed hoses.
